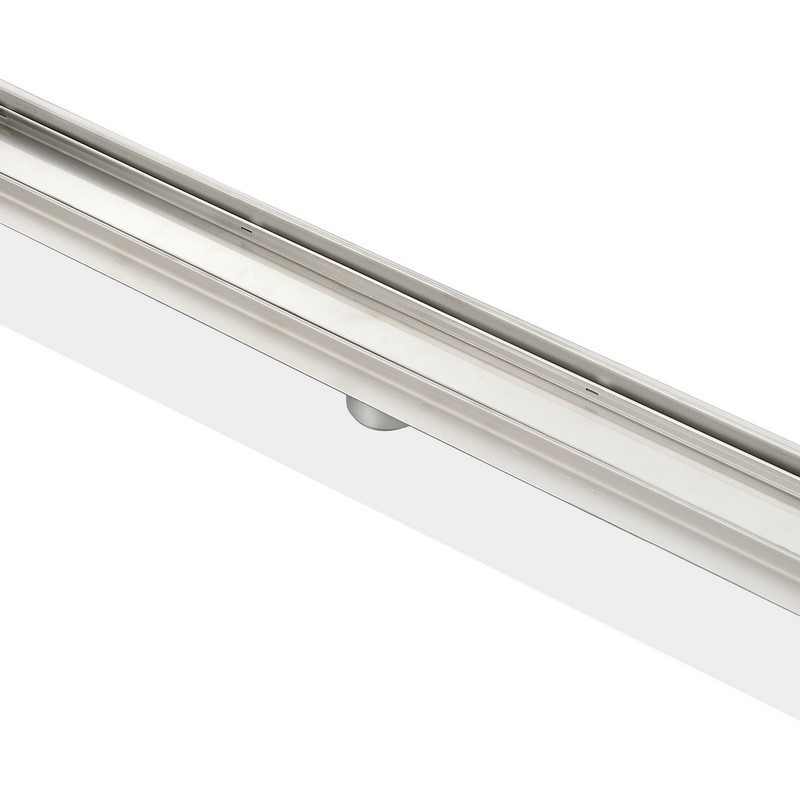

KubeBath KLD48TILE Bathroom Linear Drain In Satin Polished With Tile Grate overview
Upgrade your walk-in shower experience with the KubeBath KLD48TILE linear shower drain, expertly crafted from durable stainless steel for lasting reliability. Designed specifically for modern residential and commercial bathroom remodels, this 48-inch rectangular drainage solution accommodates tile inserts for a seamless, custom floor finish. Experience a sleek satin polished finish that not only enhances your aesthetic but also ensures safe, efficient water evacuation.
Homeowners and contractors alike appreciate the thoughtful engineering behind this model, featuring adjustable installation brackets and a generous 2-inch outlet with a 9 GPM flow rate. The included polyethylene waterproof membrane and debris strainer simplify setup while protecting your plumbing from clogs. Every detail is meticulously handcrafted to resist temperature fluctuations and maintain high hygiene standards over years of daily use.
Transform your shower space into a spa-like retreat without sacrificing drainage performance or cleaning convenience. The removable tile grate allows for straightforward maintenance, ensuring your bathroom remains fresh and beautiful. Invest in a sophisticated drainage solution that balances high-end design with everyday functionality.
Perfect For
Modern bathroom renovations seeking a seamless, curbless shower design
Custom tile shower floors requiring an integrated tile-insert drainage grate
Large-sized shower installations needing high-capacity water evacuation
Small or compact shower spaces where linear placement optimizes drainage slope
Residential and hospitality construction projects demanding high hygiene standards
Homeowners wanting to eliminate standard center drains for a cleaner aesthetic
Stainless Steel Grate Provides a durable, corrosion-resistant surface that supports custom tile inserts for a seamless bathroom floor design.
Stainless Steel Channel With Flange Edge Ensures secure water containment and simplifies integration into various subfloor constructions.

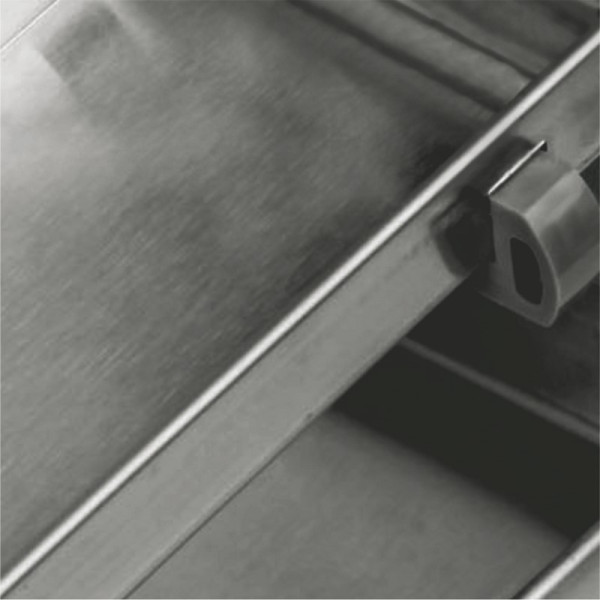

Adjustable Installation Brackets Allow for precise leveling and positioning during the setup process to match your specific slope requirements.
Removable Grate Design Enables the entire grate to be lifted out completely for hassle-free cleaning and debris removal.

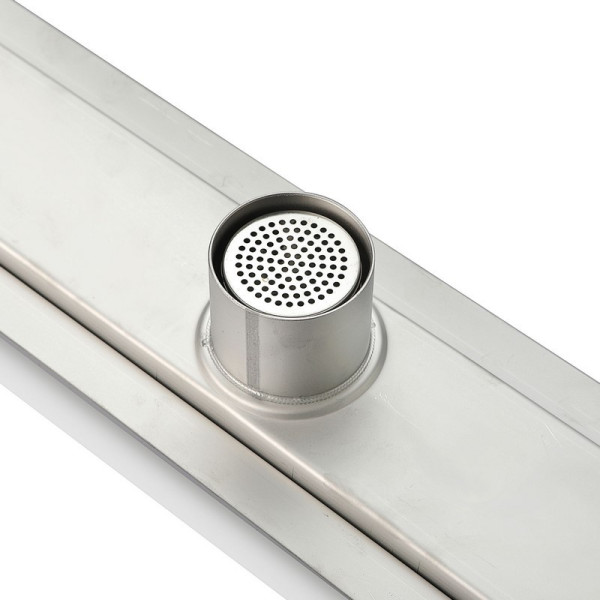

2-Inch Outlet With 9 GPM Flow Rate Delivers rapid water evacuation to prevent pooling in large or multi-head custom showers.

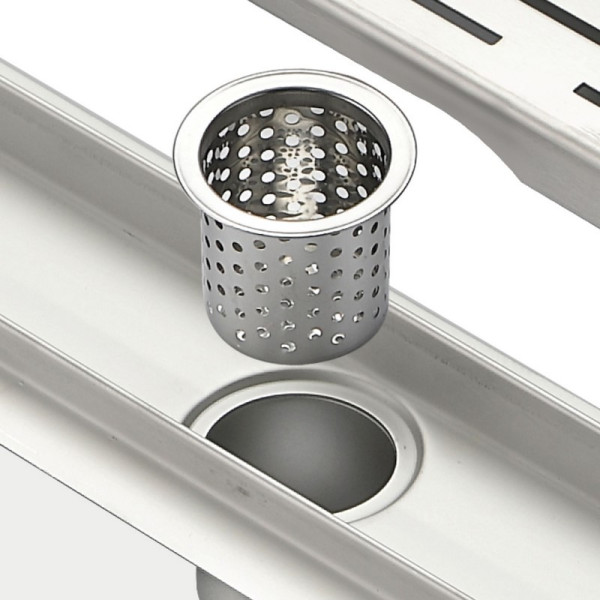

Debris Strainer Included Captures hair and large particles before they enter your plumbing lines, reducing the risk of costly clogs.
Polyethylene Waterproof Membrane Included Enhances moisture protection around the perimeter to safeguard your subfloor against leaks.
Understanding Linear Drainage Mechanics
Linear shower drains operate on a simple yet highly effective principle: instead of sloping the entire shower floor toward a single center point from four directions, a linear drain allows you to slope the floor in a single plane toward one edge. Think of it like a funnel versus a gentle ramp; water travels predictably across the flat tile surface directly into the 48-inch stainless steel channel. This design permits the use of large-format tiles on your shower floor, which are much harder to install around traditional center drains. The 2-inch outlet and 9 GPM flow rate ensure that even when multiple showerheads run simultaneously, water evacuates faster than it can accumulate, preventing overflow and keeping your bathroom floor dry and safe.
Installation Guide
Ensure the subfloor is properly prepared and structurally sound before positioning the stainless steel channel.
Use the adjustable installation brackets to level the drain body with your desired finished tile height.
Integrate the included polyethylene waterproof membrane around the flange edges to create a reliable moisture barrier.
Test the drainage slope and connection to the 2-inch outlet prior to laying final tiles.
Care & Maintenance
Routine Rinsing Flush the stainless steel grate daily with clean water to wash away soap residue and shampoo bubbles.
Debris Removal Lift out the included debris strainer weekly to empty trapped hair and particles before they cause buildup.
Grate Maintenance Remove the tile grate completely every month to wipe down the interior channel and prevent mineral deposits.
Safe Cleaning Use a soft cloth or non-abrasive sponge with mild dish soap and warm water to protect the satin polished finish.
Stain Prevention Avoid harsh scouring pads, steel wool, or bleach-based chemicals that can scratch or dull the stainless steel surface.
FAQ
Q: What is the overall length of this linear shower drain?
A: This model measures 48 inches in length, making it suitable for a wide range of shower stall sizes.
Q: What material is the drain constructed from?
A: Both the channel and the grate are crafted from high-quality stainless steel with a satin polished finish.
Q: Can I insert my own floor tile into the grate?
A: Yes, the included tile grate is specifically designed to accept matching floor tiles for a seamless, concealed look.
Q: What is the diameter of the outlet and the flow rate?
A: It features a 2-inch outlet with an impressive flow rate of 9 GPM to handle high-volume water drainage.
Q: Is a waterproofing membrane included in the box?
A: Yes, a polyethylene waterproof membrane is included to help secure your subfloor against moisture leaks.
Q: How do I clean inside the drain channel?
A: The grate can be removed completely, allowing easy access to the interior channel and the included debris strainer for routine cleaning.
Q: Can this drain be adjusted during installation?
A: Yes, it comes with adjustable installation brackets to help you achieve the correct height and alignment during setup.
Q: Is this drain suitable for temperature fluctuations?
A: Yes, the handcrafted stainless steel construction is highly resistant to temperature variations commonly found in shower environments.
What Customers Are Saying
A homeowner in Austin undertook a master bathroom remodel to replace an outdated center-drain setup with a modern curbless walk-in shower layout.
The KubeBath linear drain completely changed the look of our shower floor. Being able to insert the matching floor tile right into the grate gives it a high-end custom finish, and water drains away instantly without any pooling.
David Miller - Homeowner
Achieved a sleek modern shower aesthetic and improved water drainage speed by 40 percent.
The satin polished finish looks stunning in our newly tiled walk-in shower, and the water drains away effortlessly.
Sarah Jenkins | Interior Designer
Being able to put our floor tile right into the grate makes the drain practically invisible. Excellent build quality.
Mark Thompson | General Contractor
Installation brackets made leveling straightforward. The included debris strainer is a great bonus for catching hair.
Elena Rodriguez | Homeowner
Solid stainless steel construction that handles our multi-head shower setup without any drainage backup issues.
James Wilson | Custom Builder
Cleaning is simple because the entire grate lifts right out. Very pleased with the overall performance and look.
Rachel Adams | Property Investor
Engineering Excellence for Modern Showers
Investing in a high-quality stainless steel linear drain is about more than just surface aesthetics; it is a commitment to long-term structural integrity in your bathroom. KubeBath designs each piece to endure the constant moisture and thermal expansion cycles inherent to daily shower use. By utilizing resilient stainless steel materials, this drainage system resists corrosion and maintains its structural stability over years of heavy operation. The inclusion of specialized components like the polyethylene waterproof membrane further safeguards your subfloor against hidden moisture intrusion, preventing costly repairs down the road.
Daily shower routines benefit immensely from thoughtful engineering choices that prioritize hygiene and low maintenance. The smooth satin polished surfaces discourage bacterial buildup and soap scum adhesion, making routine upkeep significantly easier for homeowners. Features like the removable tile grate and dedicated debris strainer ensure that maintenance takes minutes rather than hours, helping you preserve a pristine bathroom environment with minimal effort. Choosing a reliable linear drain solution elevates both the functionality and peace of mind in your custom shower space.
Why This Is the Right Choice
Exceptional Durability Built from premium stainless steel to withstand daily moisture and temperature variations without degrading.
High Flow Capacity Features a 2-inch outlet supporting 9 GPM to efficiently manage high-volume shower systems.
Simplified Maintenance The removable tile grate and included debris strainer make routine upkeep quick and straightforward.
Complete Kit Solution Includes a polyethylene waterproof membrane and adjustable installation brackets for a reliable subfloor setup.
